10 ton wheel excavator advantages
The customized 10-ton heavy-duty wheel-side drive axle has large bearing capacity and long service life.
The structural parts adopt finite element analysis technology and high-strength load test to strengthen important bearing parts and are durable.
The hydraulic pipelines of international standards are adopted, with better sealing performance, which effectively solves leakage problems such as leakage.
The advanced power matching technology of JNHTC MACHINE is adopted, and the power, transmission and hydraulic systems are perfectly matched, with high operating efficiency.
The hinge points of the working device are optimized and the hydraulic system is upgraded, so the compound actions are more coordinated, the actions are precise, and the loading speed is fast.
The 2.5m ultra-long wheelbase and large-size tires have high speed, fast transition, smoother clamping operation and high efficiency.
The large-displacement main pump, large-diameter main valve and rotary motor have large lifting force and rotary torque, and the operating efficiency is increased by 10% compared with the previous generation.
The large-angle articulated balancing cylinder has a suspension stroke of up to 140mm, which still has high-strength escape ability in extremely uneven muddy conditions.
10 ton wheel excavator parameters
| Speciications | |||||||||
| Engine Power(Kw/rmp) | 62.5/2200 | ||||||||
| System Pressure(Mpa) | 24 | ||||||||
| Pilot Hydraulic Pressure(Mpa) | 3.5-4 | ||||||||
| Gradeability(°) | 20 | ||||||||
| Travellng Speed(Km/h) | 30 | ||||||||
| Swing Speed(Rmp) | 00-11 | ||||||||
| Fuel Tank Capacity(L) | 100 | ||||||||
| Hydraulic Tank Capacity(L) | 90 | ||||||||
| Tire Model | 9.00-16 | ||||||||
| Machine size | |||||||||
| Overall Width(mm) | 2175 | ||||||||
| Overall Height(mm) | 2850 | ||||||||
| Overall Length During Transportation(mm) | 7100 | ||||||||
| Axle base(mm) | 2400 | ||||||||
| Minimum Ground Clearance(mm) | 235 | ||||||||
| Rear rotation radius(mm) | 1940 | ||||||||
| Working range | |||||||||
| Bocm Length(mm) | 4100 | ||||||||
| Arm Length(mm) | 2200 | ||||||||
| Maximum L0ading Distance(mm) | 8300 | ||||||||
| Maximum Discharge Height(mm) | 5850 | ||||||||
| Maximum Loading Weight(mm) | 800 | ||||||||
| Maximum Grab Radius(mm) | 7935 | ||||||||
| Wood Grapple Maximum Opening size(mm) | 1300 | ||||||||
| Wood Grapple Minimum Opening size(mm) | 120 | ||||||||

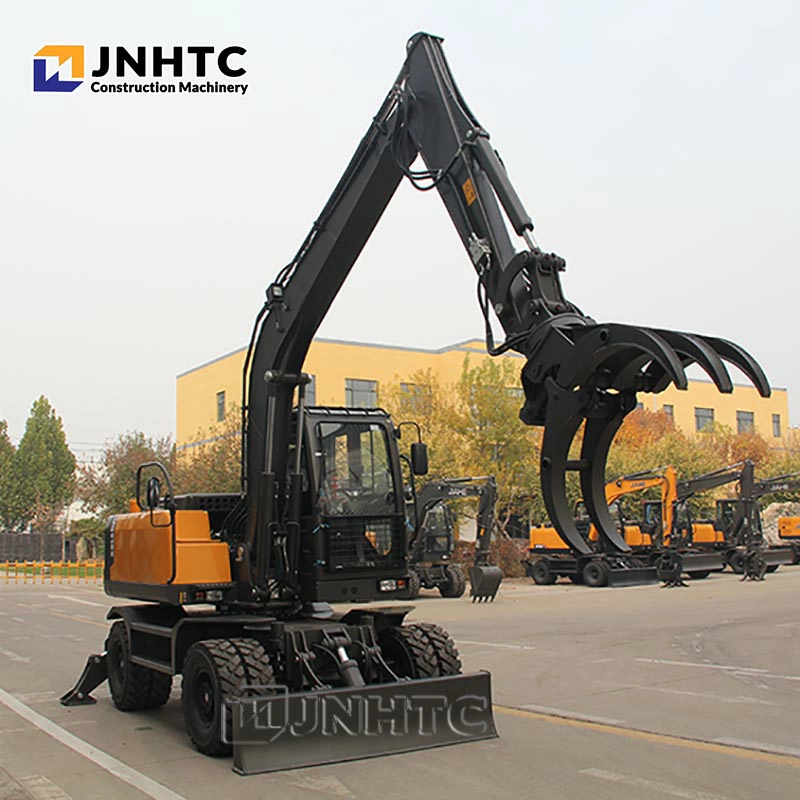

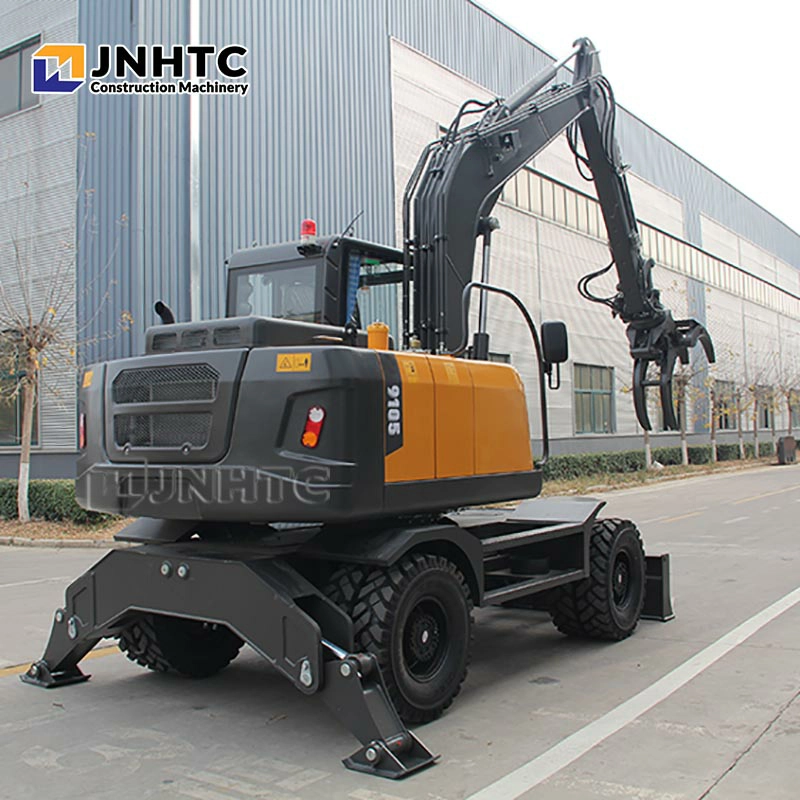

10 ton wheel excavator pictures
