1200kg skid steer loader Advantages
1. Powerful Performance
Engineered to deliver consistent power for demanding workloads.
Advanced hydraulic systems ensure smooth and efficient operation.
2. Exceptional Versatility
Compatible with a wide range of attachments, including buckets, trenchers, augers, and forks.
Quick-attach system enables seamless switching between tools for various tasks.
3. Maneuverability in Tight Spaces
Skid-steer design allows for precise operation in limited working areas.
Ideal for urban projects, indoor workspaces, and sites with restricted access.
1200kg skid steer loader parameters
| Performance | Operating weight（kg） | 3800 | ||||||||||
| Rated load（kg） | 1200 | |||||||||||
| Bucket capacity（m³) | 0.6 | |||||||||||
| Max Speed（km/h） | 12-18 | |||||||||||
| Max traction（kN） | >30 | |||||||||||
| Max breakout（kN） | ≥ 20 | |||||||||||
| Lifting time of boom（s） | 7 | |||||||||||
| Engine | Manufacturer | Weichai | ||||||||||
| Model | WP4.1 | |||||||||||
| Rated power（kW/rpm） | 74.9/2400 | |||||||||||
| Engine displacement（L） | 4.088 | |||||||||||
| Emission Standard | EU2 | |||||||||||
| Dimension | Overall operating height（mm） | 4290 | ||||||||||
| Height to bucket hinge pin（mm） | 3278 | |||||||||||
| Height to top of cab（mm） | 2160 | |||||||||||
| Height to bottom of level bucket（mm） | 2983 | |||||||||||
| Without bucket length（mm） | 2963 | |||||||||||
| Overall length with bucket（mm） | 3735 | |||||||||||
| Dumping angle at maximum height(°) | 40 | |||||||||||
| Dumping height（mm） | 2500 | |||||||||||
| Dumping reach（mm） | 700 | |||||||||||
| Rollback of bucket on ground(°) | 30 | |||||||||||
| Rollback of bucket at full height(°) | 104 | |||||||||||
| Wheelbase（mm） | 1185 | |||||||||||
| Ground clearance（mm） | 205 | |||||||||||
| Angle of departure(°) | 20 | |||||||||||
| Front turning radius without bucket（mm） | 1278 | |||||||||||
| Front tuning radius（mm） | 2144 | |||||||||||
| Rear tuning radius（mm） | 1857 | |||||||||||
| Rear axle to bumper（mm） | 1082 | |||||||||||
| Tread width（mm） | 1500 | |||||||||||
| Width (mm) | 1880 | |||||||||||
| Bucket width（mm） | 1880 | |||||||||||

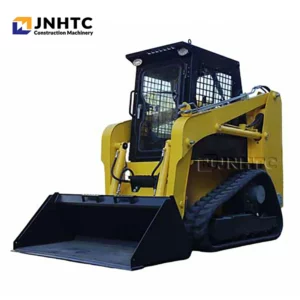

1200kg skid steer loader pictures
