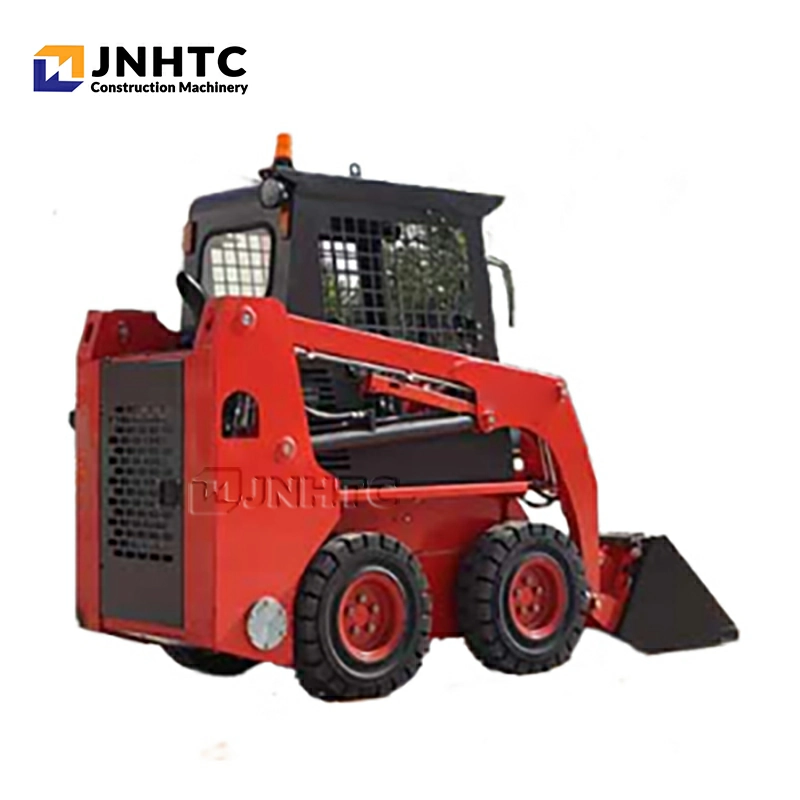

Super strong load-bearing capacity, efficient operation
Designed for heavy-duty working conditions, with a rated load of 380kg and a standard high-wear-resistant bucket. It can easily handle heavy material handling such as sand, ore, and building materials.
Supports quick connection of more than 30 types of accessories (such as breakers, wood grabbers, milling machines, de-icing shovels), covering diversified needs such as building demolition, forestry processing, road maintenance, and port loading and unloading.
| Performance | Operating weight(kg) | 1460 | ||||||||||
| Rated load(kg) | 380 | |||||||||||
| Bucket capacity(m³) | 0.2 | |||||||||||
| Max Speed(km/h) | 9 | |||||||||||
| Max traction(kN) | ≥ 12 | |||||||||||
| Max breakout(kN) | ≥ 7.3 | |||||||||||
| Lifting time of boom(s) | 7 | |||||||||||
| Engine | Manufacturer | Kubota | ||||||||||
| Model | D1105 | |||||||||||
| Rated power(kW/rpm) | 18.2/3000 | |||||||||||
| Engine displacement(L) | 1.123 | |||||||||||
| Emission Standard | EU2/EPA4 | |||||||||||
| Dimension | Overall operating height(mm) | 3400 | ||||||||||
| Height to bucket hinge pin(mm) | 2500 | |||||||||||
| Height to top of cab(mm) | 1813 | |||||||||||
| Height to bottom of level bucket(mm) | 2446 | |||||||||||
| Without bucket length(mm) | 2200 | |||||||||||
| Overall length with bucket(mm) | 2950 | |||||||||||
| Dumping angle at maximum height(°) | 40 | |||||||||||
| Dumping height(mm) | 2000 | |||||||||||
| Dumping reach(mm) | 441 | |||||||||||
| Rollback of bucket on ground(°) | 30 | |||||||||||
| Rollback of bucket at full height(°) | 103 | |||||||||||
| Wheelbase(mm) | 801 | |||||||||||
| Ground clearance(mm) | 145 | |||||||||||
| Angle of departure(°) | 20 | |||||||||||
| Front turning radius without bucket(mm) | 960 | |||||||||||
| Front tuning radius(mm) | 1660 | |||||||||||
| Rear tuning radius(mm) | 1253 | |||||||||||
| Rear axle to bumper(mm) | 910 | |||||||||||
| Tread width(mm) | 785 | |||||||||||
| Width (mm) | 920 | |||||||||||
| Bucket width(mm) | 1070 | |||||||||||
