1500kg skid steer loader Advantages
Skid-steering design allows for a small turning radius, ideal for confined spaces.
Capable of rotating in place, perfect for urban construction and complex environments.
Compatible with a wide range of attachments, such as buckets, hydraulic breakers, sweepers, and augers, to handle diverse tasks.
Quick attachment-changing system for convenient and efficient operation.
Reinforced chassis and hydraulic system ensure stable performance under heavy workloads.
Equipped with a secure operator cabin and intelligent control system for enhanced safety.
1500kg skid steer loader parameters
| Performance | Operating weight（kg） | 5100 | ||||||||||
| Rated load（kg） | 1500 | |||||||||||
| Bucket capacity（m³) | 0.6 | |||||||||||
| Max Speed（km/h） | 12-18 | |||||||||||
| Max traction（kN） | >32 | |||||||||||
| Max breakout（kN） | ≥ 22 | |||||||||||
| Lifting time of boom（s） | 7 | |||||||||||
| Engine | Manufacturer | WeiChai | ||||||||||
| Model | WP4.1 | |||||||||||
| Rated power（kW/rpm） | 103/2300 | |||||||||||
| Engine displacement（L） | 4.088 | |||||||||||
| Emission Standard | EU2 | |||||||||||
| Dimension | Overall operating height（mm） | 4070 | ||||||||||
| Height to bucket hinge pin（mm） | 3150 | |||||||||||
| Height to top of cab（mm） | 2160 | |||||||||||
| Height to bottom of level bucket（mm） | 2983 | |||||||||||
| Without bucket length（mm） | 3000 | |||||||||||
| Overall length with bucket（mm） | 3795 | |||||||||||
| Dumping angle at maximum height(°) | 40 | |||||||||||
| Dumping height（mm） | 2450 | |||||||||||
| Dumping reach（mm） | 700 | |||||||||||
| Rollback of bucket on ground(°) | 30 | |||||||||||
| Rollback of bucket at full height(°) | 104 | |||||||||||
| Wheelbase（mm） | 1500 | |||||||||||
| Ground clearance（mm） | 200 | |||||||||||
| Angle of departure(°) | 20 | |||||||||||
| Front turning radius without bucket（mm） | 1365 | |||||||||||
| Front tuning radius（mm） | 2200 | |||||||||||
| Rear tuning radius（mm） | 1742 | |||||||||||
| Rear axle to bumper（mm） | 938 | |||||||||||
| Tread width（mm） | 1674 | |||||||||||
| Width (mm) | 2124 | |||||||||||
| Bucket width（mm） | 2134 | |||||||||||

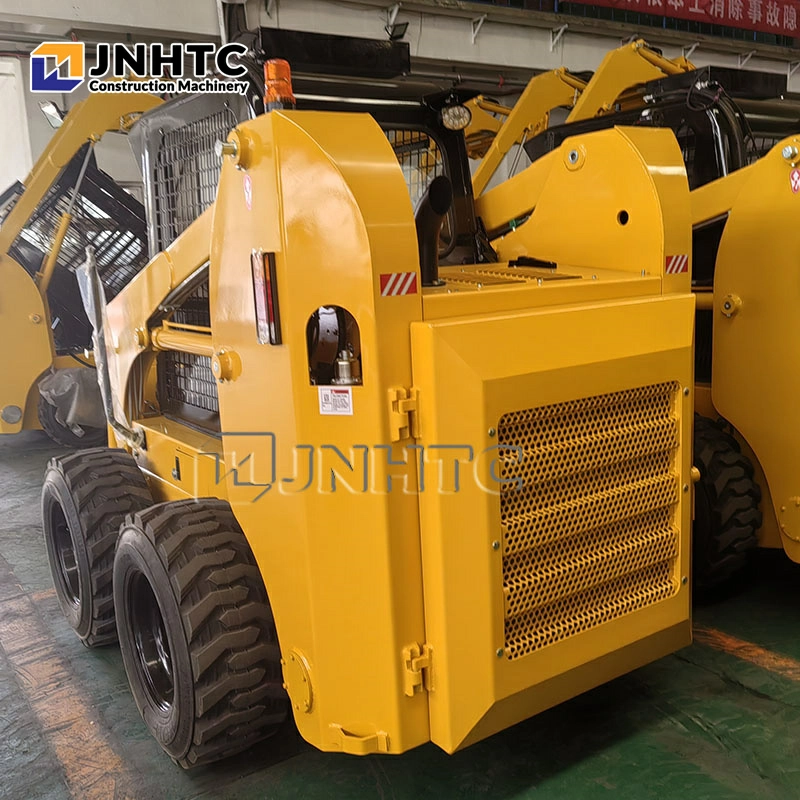

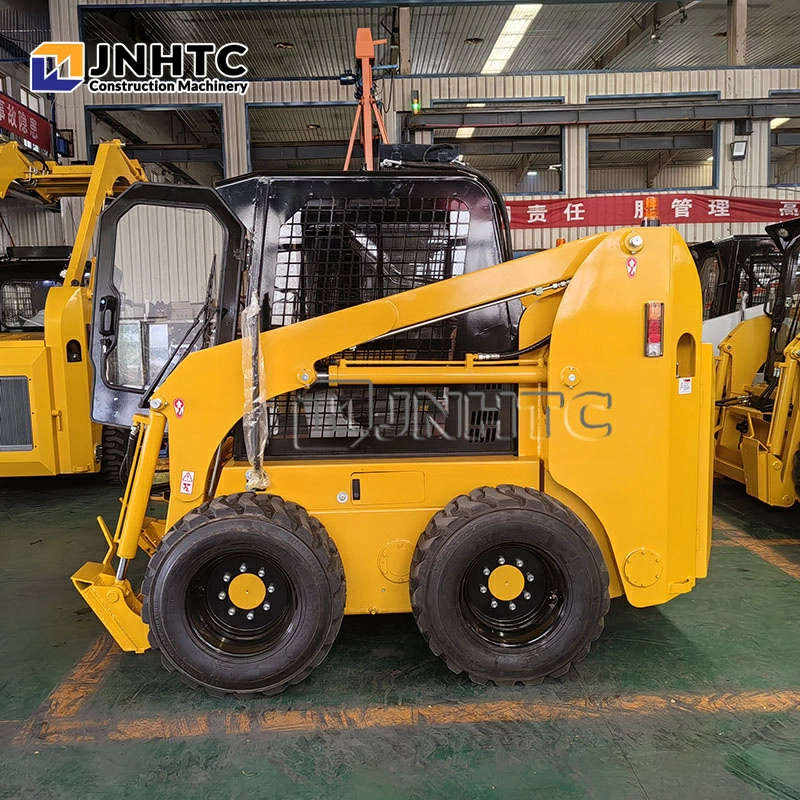

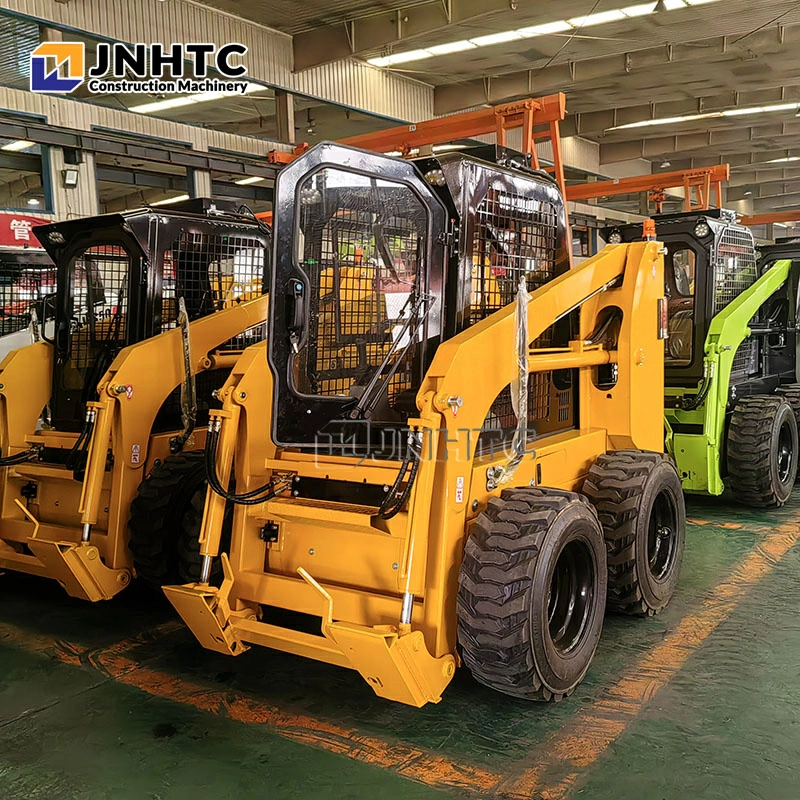

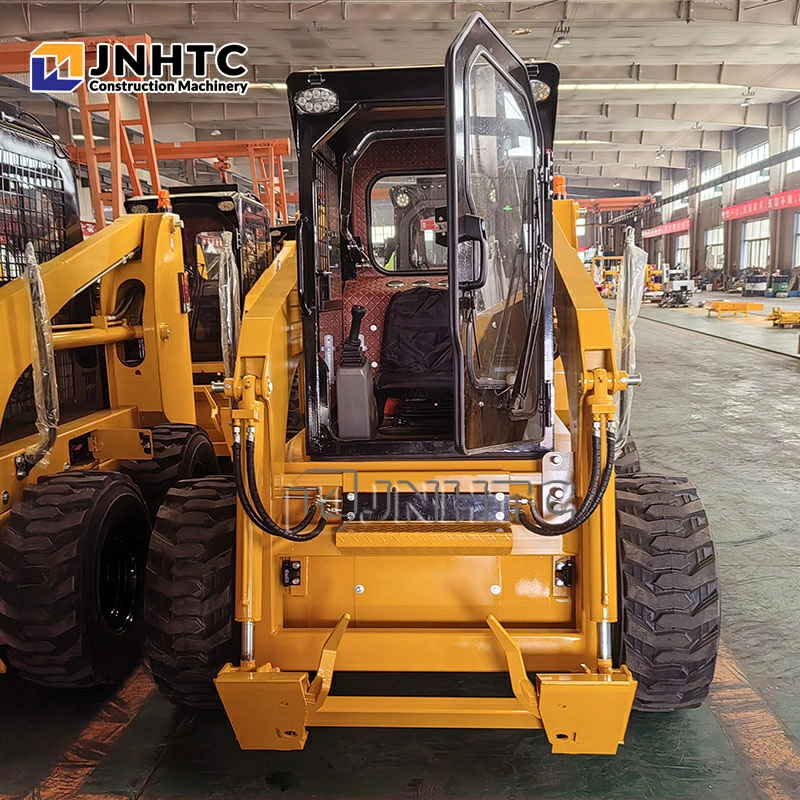

1500kg skid steer loader pictures
