2.2 ton excavator Advantages
It adopts internationally renowned brand engines, meets the National IV emission standards, has large torque, strong power, energy saving and fuel saving.
The undercarriage is reinforced as a whole, and the whole vehicle is welded by robots, with high welding precision and beautiful shape.
High-quality hydraulic accessories are used to ensure the reliability of the hydraulic system.
Various attachments such as various breakers, tillers, wood grabbers, spiral drills, etc. can be installed. At the same time, the crawler can be equipped with iron crawlers or rubber crawlers.
2.2 ton excavator Product Parameters
| Specificationg | |||||||||
| Bucket Capacity(m³) | 0.1 | ||||||||
| Swing Speed(rmp) | 0-12 | ||||||||
| Gradeablity(°) | 30 | ||||||||
| Max.Bucket Digging Force(KN) | 15.3 | ||||||||
| Max.Arm Digging Force(KN) | 10.5 | ||||||||
| Engine Model | Kubota/Yanmar | ||||||||
| Power/reyolution speeo(KW/rmp） | 22.1/2300 | ||||||||
| Tire Mode | |||||||||
| System Pressure(MPa) | 18 | ||||||||
| Machine size | |||||||||
| Dimension Length*Width*Height(mm) | 4170×1300×2270 | ||||||||
| Cabin Height(mm) | 2280 | ||||||||
| Sproket to ldler(mm) | 1230 | ||||||||
| Wheell (Track)Guage(mm) | 1050 | ||||||||
| Minimum ground clearance(mm) | 210 | ||||||||
| Tail Swing Radius(mm) | 1180 | ||||||||
| Working range | |||||||||
| Max.Digging Height(mm) | 3700 | ||||||||
| Max.Dumping Height(mm) | 2280 | ||||||||
| Max.Digging Depth(mm) | 2450 | ||||||||
| Max.Vertical Digging Depth(mm) | 2160 | ||||||||
| Max.Digging Radus(mm) | 4370 | ||||||||
| Min.Swing Radius(mm) | 2020 | ||||||||
| Max.Dozer Blade Lifting Distance(mm) | 240 | ||||||||
| Max.Dozer Blade Cutting Distance(mm) | 310 | ||||||||
| Boom Swing Angle (Left)(mm) | 70 | ||||||||
| Boom Swing Angle(Right)(mm) | 50 | ||||||||

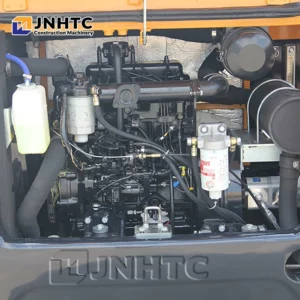

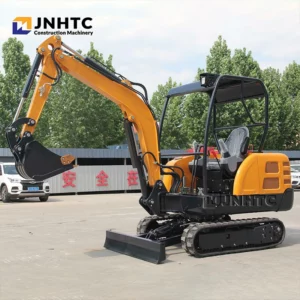

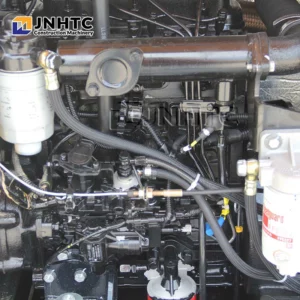

2.2 ton excavator pictures
