2.5 ton forklift Advantages
The maximum carrying capacity is 2.5 tons, which can easily cope with the handling needs of large goods.
The stable hydraulic system ensures smooth and safe material operation.
Efficient and energy-saving power system
Equipped with an environmentally friendly engine, it has both high performance and low fuel consumption to reduce operating costs.
The power output is stable and supports long-term high-intensity operation.
Excellent operational flexibility
Compact design and small turning radius are suitable for narrow space operations.
The all-wheel drive system improves the performance of the equipment in complex terrain.
Safety and comfort design
Reinforced cab structure, providing all-round protection to ensure driver safety.
Humanized seat and control device design to reduce fatigue during long-term operation.
Easy maintenance and long service life
2.5 ton forklift parameters
| 2000kg | ||
| Rated load | kg | 2000 |
| J Load center distance | mm | 500 |
| H1 Maximum lifting height | mm | 3000 |
| H3 Free lifting height | mm | 150 |
| Gantry inclination | deg | 6 in front and 12 in back |
| Maximum travel speed (full load/no load) | Km/h | 18/20 |
| Maximum lifting speed (no load/full load) | mm/s | 550/530 |
| Maximum climbing grade (no load/full load) | % | 20 |
| Deadweight | kg | 3400 |
| Model | YN4A055-44CR | |
| Rated power | kW/r | 36.8/2600 |
| Rated torque | N·m/r | 180/1600～1950 |
| Number of cylinders | 4 |

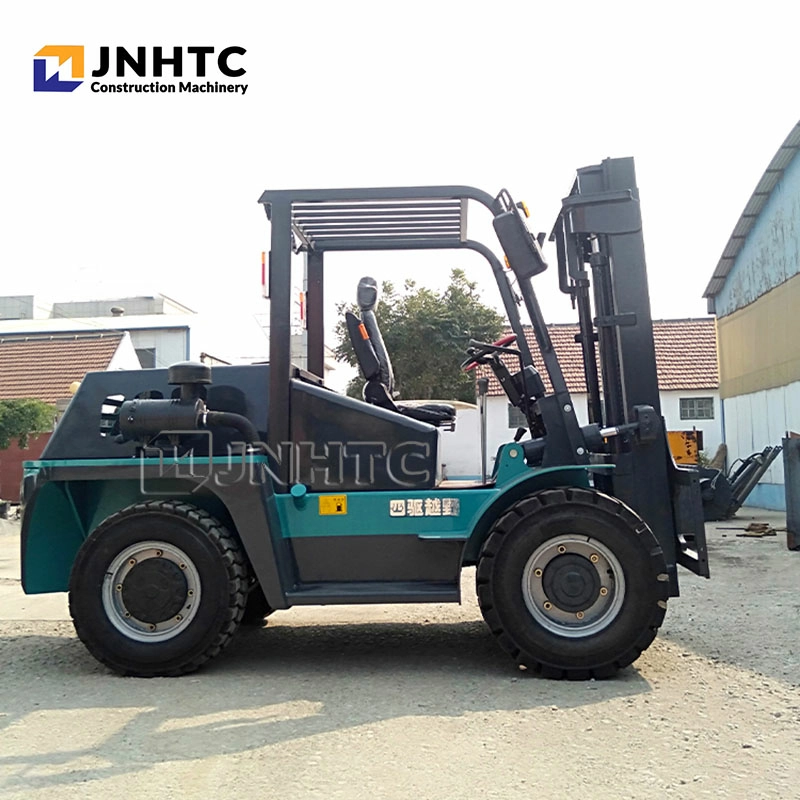

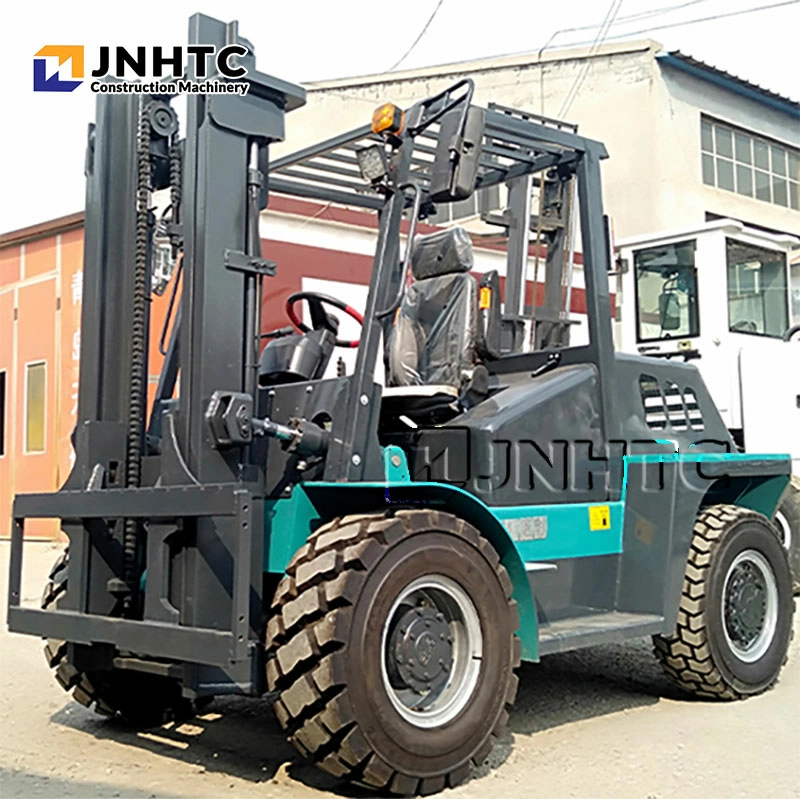

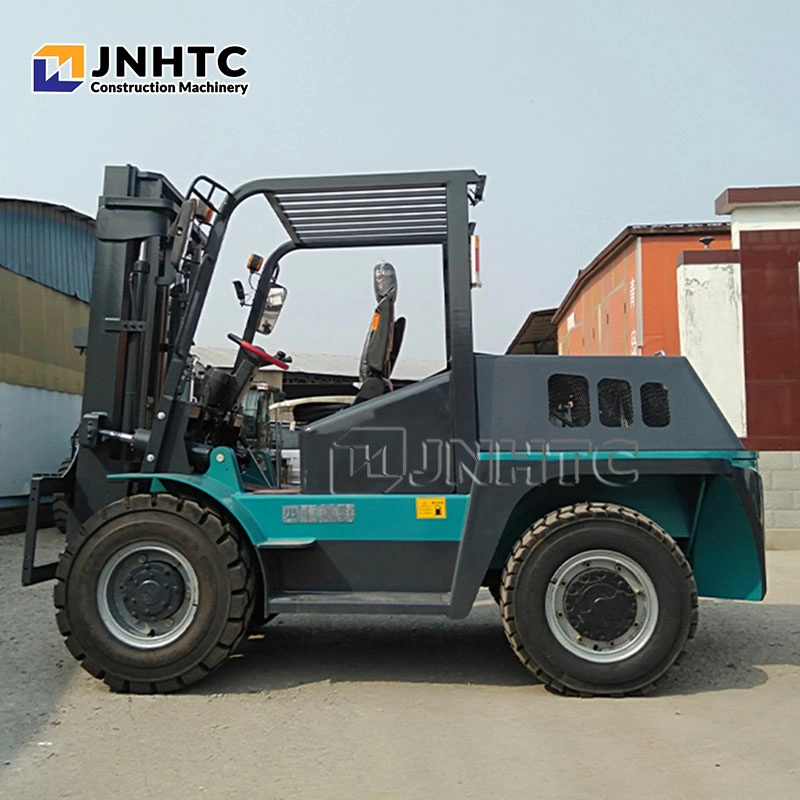

2.5 ton forklift pictures
