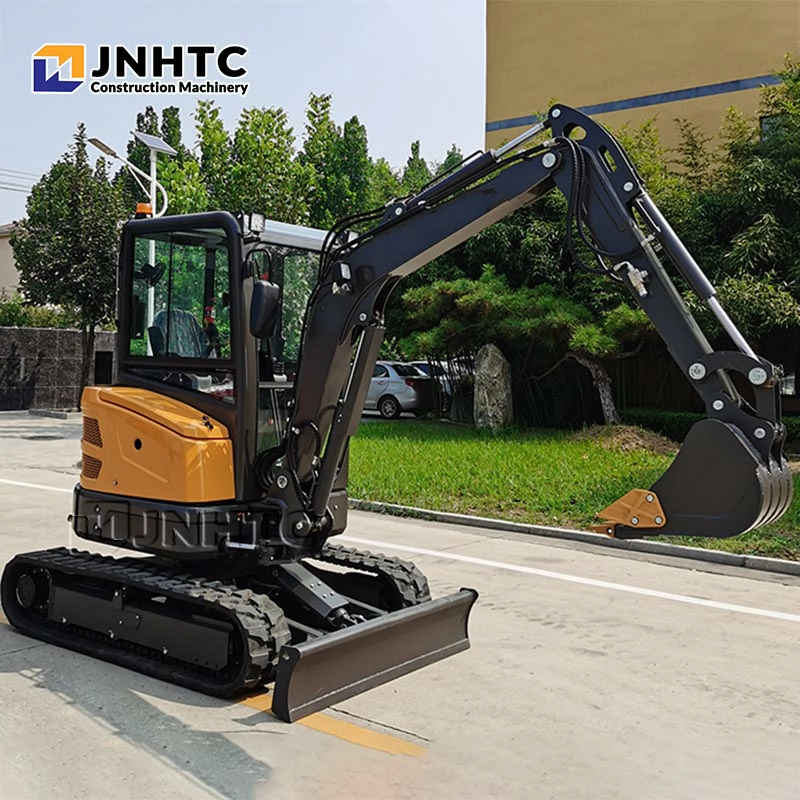

2.7 ton excavator advantages
The overall appearance adopts a tailless design, which can work unhindered in narrow spaces such as streets and basements. The ultra-small turning radius ensures the convenience of construction and improves construction safety.
Spare hydraulic pipelines can be configured, and the spare pipelines can realize the installation of hydraulic quick change and breaker hammer, further expanding the adaptability of working conditions.
The engine is powerful and the gearbox adopts a new structure. The machine is loved by customers in many countries.
2.7 ton excavator parameters
| Specifications | |||||||||
| Bucket Capacity(m²) | 0. | ||||||||
| Swing Speed(rmp) | 1-10 | ||||||||
| Gradeablity(0) | 58 | ||||||||
| Max.Bucket Digging Force(KN) | 23.5 | ||||||||
| Max.Arm Digging Force(KN) | 4 | ||||||||
| Engine Model | D1105-E4B | ||||||||
| Powerlreyolution speed(KW/rmp) | 14/2000 | ||||||||
| Tire Model | |||||||||
| System Pressure(MPa) | 20.5 | ||||||||
| Machine size | |||||||||
| Dimension Length*Width*Height(mm) | 4195x1550x2480 | ||||||||
| Cabin Heighi(mm) | 2480 | ||||||||
| Axle Base(mm) | 1563 | ||||||||
| Wheel(track)Distance(mm) | 1250 | ||||||||
| Minimum ground clearance(mm) | 285 | ||||||||
| Tail Swing Radius(mm) | 860 | ||||||||
| Working range | |||||||||
| Max.Digging Height(mm) | 4427 | ||||||||
| Max.Dumping Height(mm) | 3005 | ||||||||
| Max.Digging Depth(mm) | 2830 | ||||||||
| Max.Vertical Digging Depth(mm) | 2500 | ||||||||
| Max.Digging Radius(mm) | 4835 | ||||||||
| Min.Swing Radius(mm) | 2160 | ||||||||
| Max.Dozer Blade Lifting Distance(mm) | 308 | ||||||||
| Max.Dozer Blade Cutting Distance(mm) | 360 | ||||||||
