21 ton wheel excavator advantages
The 21-ton wheeled excavator is a powerhouse, equipped with a high-torque engine and advanced hydraulic systems. It delivers exceptional digging depth, lifting strength, and breakout force, making it perfect for heavy-duty tasks such as large-scale excavation, material handling, and road construction.
Compatible with a wide range of attachments, including hydraulic breakers, grapples, and specialized buckets, the 21-ton excavator is suitable for diverse applications like trenching, demolition, utility work, and earthmoving.
21 ton wheel excavator parameters
| Specifications | |||||||||
| Bucket Capacity(m³) | 1.1 | ||||||||
| Swing Speed(rmp) | 00-12 | ||||||||
| Gradeablity(°) | 25 | ||||||||
| Max.Bucket Digging Force(KN) | 140 | ||||||||
| Max.Arm Digging Force(KN) | 100 | ||||||||
| Engine Model | 6BTAA5.9 | ||||||||
| Power/revolution speed(KW/rmp) | 153/2000 | ||||||||
| Tire Mode | 10.00-20 | ||||||||
| System Pressure(MPa) | 34 | ||||||||
| Machine size | |||||||||
| Dimension Length*Width*Height(mm) | 9600x2500x3524 | ||||||||
| Cabin Height(mm) | 3234 | ||||||||
| Axle Base(mm) | 2850 | ||||||||
| Wheel(track)Distance(mm) | 1914 | ||||||||
| Minimum ground clearance(mm) | 380 | ||||||||
| Tail Swing Radius(mm) | 2880 | ||||||||
| Working range | |||||||||
| Max.Digging Height(mm) | 10339 | ||||||||
| Max.Dumping Height(mm) | 7406 | ||||||||
| Max.Digging Depth(mm) | 6052 | ||||||||
| Max.Vertical Digging Depth(mm) | 5673 | ||||||||
| Max.Digging Radius(mm) | 9815 | ||||||||
| Min.Swing Radius(mm) | 2990 | ||||||||
| Max.Dozer Blade Lifting Distance(mm) | 419 | ||||||||
| Max.Dozer Blade Cutting Distance(mm) | 74 | ||||||||

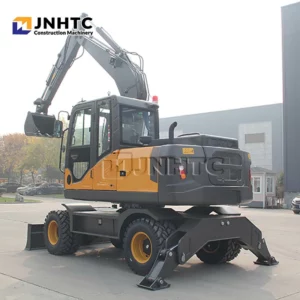

21 ton wheel excavator pictures
