Road roller is a kind of engineering machinery. It is suitable for filling and compaction operations of large-scale engineering projects such as high-grade highways, railways, airport runways, dams, etc. It has good plateau (3500m above sea level) operating performance: it can roll sandy, semi-viscous and cohesive soils, with large excitation force and an impact depth of more than 1 meter. So this issue of the special topic will explain the relevant knowledge of rollers in detail.
Types of rollers

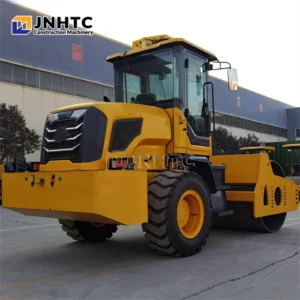

1. Single steel wheel vibrating roller
Single steel wheel vibrating roller has the characteristics of large static linear load, deep compaction impact, and high operating efficiency. It can effectively compact various types of non-viscous soils such as sand, gravel, gravel, and other non-viscous soils, crushed stone, block stone, and piled stone. It is suitable for earthwork foundation compaction construction such as roads, airports, embankment filling, seaports, dams, etc.
2. Double steel wheel vibrating roller
Double steel wheel vibrating roller is mainly suitable for compaction of asphalt concrete, RCC concrete and other pavements, and can also be used for compaction of roadbed, sub-roadbed and stable layer.
3. Tire roller
Tire roller is a compaction machine that relies on its own gravity and uses special pneumatic tires to increase the density of the working medium by static compaction of the pavement material. It is widely used in the compaction of the base layer, sub-base layer, backfill and asphalt surface layer of various materials; especially in the compaction of asphalt pavement, its unique flexible compaction function cannot be replaced by other compaction equipment. It is the main machine for the re-compaction of asphalt mixtures and an ideal compaction equipment for the construction of high-grade highways, airports, ports, dams and industrial construction sites.
Classification of rollers
Generally, compaction machinery can be divided into rollers and tamping machinery. According to the different working quality range, compaction principle and specific structure, the classification of rollers is also different.
Classification by working quality range
According to the different working quality, rollers can be divided into light, small, medium, heavy and super heavy.
According to the compaction principle
Road rollers can be divided into static action type, vibration type and impact type according to the different compaction principles
3. According to the compaction wheel structure and action mode
(1) According to the compaction wheel structure type, road rollers can be divided into smooth wheel type, bump (sheep foot roller) type and tire type, etc.
(2) According to the compaction wheel combination type, road rollers can be divided into tire-smooth wheel combination type, vibration-oscillation combination type, etc.
(3) According to the compaction wheel action mode, vibratory rollers can be divided into vibration type, oscillation type and vertical vibration type, etc.
4. According to the operation and driving mode
According to the different operation and driving modes, road rollers can be divided into self-propelled, walk-behind and towed types, as shown in Table 2-2. 5. According to the number of main wheels
According to the number of compacting wheels, rollers can be divided into two-wheel type, three-wheel type, single-wheel vibration type, double-wheel vibration type and multi-wheel vibration type.
6. According to the number of driving wheels
According to the number of driving wheels, rollers can be divided into single-wheel drive type, double-wheel drive type and full-wheel drive type
7. According to the type of transmission mechanism, rollers can be divided into mechanical transmission type, hydraulic mechanical transmission type, hydraulic mechanical transmission type and full hydraulic transmission type. At present, the vibration system and steering system of the roller generally use full hydraulic transmission technology. Therefore, when the roller is classified according to the transmission mechanism, it mainly refers to the drive type of the travel system.
8. According to the steering mode, rollers can be divided into front wheel deflection steering type, double wheel deflection steering type, single articulation steering type, single wheel deflection and single articulation combined steering type and double articulation steering type according to the steering mode. Among them, rollers with double wheel deflection steering type, single wheel deflection and single articulation combined steering type and double articulation steering type can realize crab walking function.
